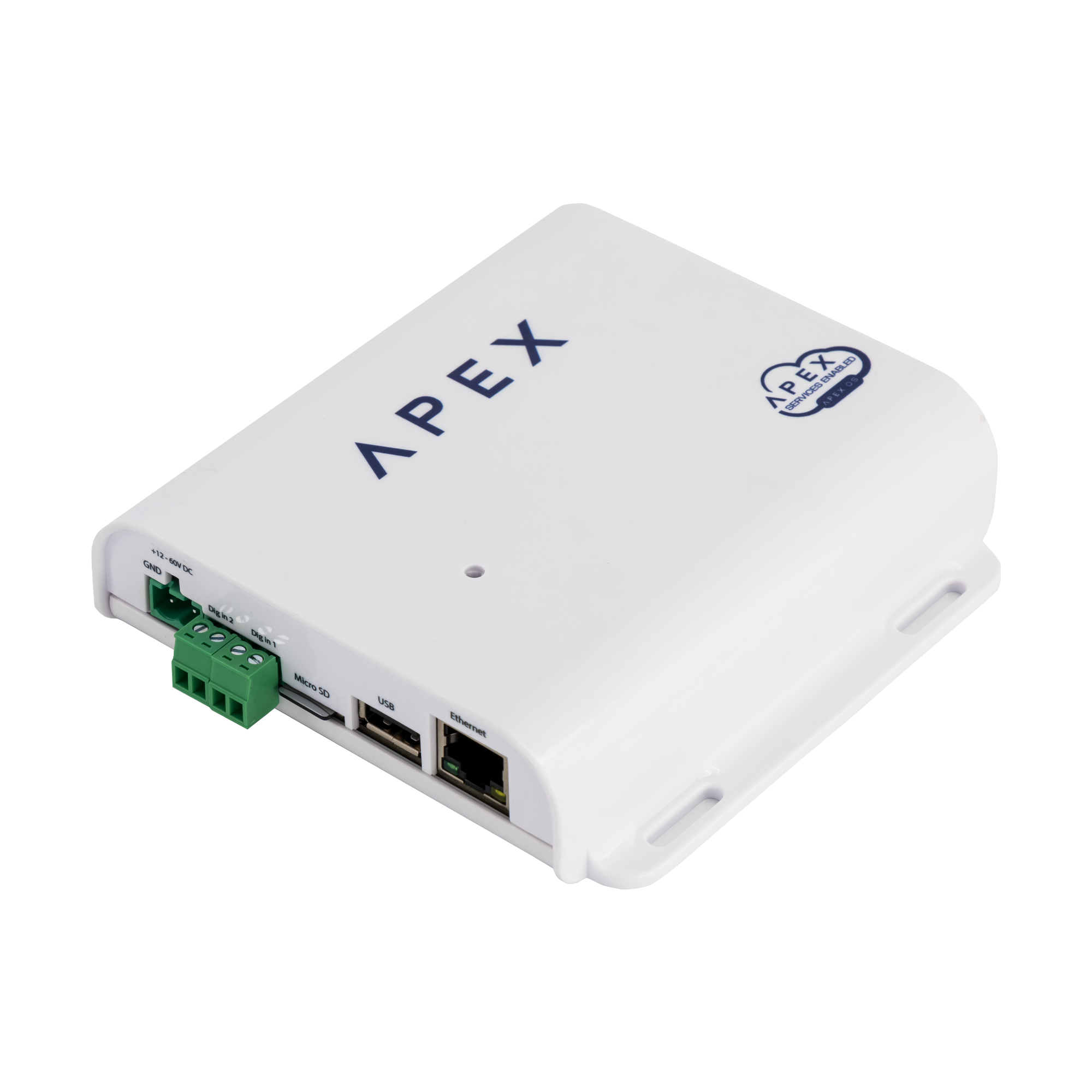

APEX Edge Device
Designed for the monitoring of inverters, energy meters and batteries using onboard RS-232, RS-485, CAN bus or USB interfaces. Supported field devices can be remotely controlled and managed, while monitoring data is stored in Apex's Cloud platform.
Smart Device Monitoring
The APEX Edge Device provides comprehensive monitoring and control capabilities for your energy infrastructure. With multiple communication interfaces and cloud connectivity, it bridges the gap between your field devices and modern monitoring platforms.
Multiple Interface Support
RS-232, RS-485, CAN Bus, and USB connectivity options
Cloud and Local Storage
Data stored both in Apex Cloud and locally on SD card
Remote Configuration
Easy setup via mobile device using local Wi-Fi hotspot
Flexible Connectivity
Wi-Fi, Ethernet, optional LTE and LoRa modules
Key Features
Comprehensive monitoring and control capabilities for modern energy infrastructure
Monitor inverters, energy meters and batteries in real-time
Remotely control and manage supported field devices
Data stored in Apex's Cloud platform for easy access
Local SD card storage for data redundancy
Configure device via local web interface from mobile
2x 5A dry contact outputs for device control
Wi-Fi, Ethernet, LTE and LoRa connectivity options
RS-232, RS-485, CAN Bus and USB interfaces
Ethernet-based Modbus communication protocol
Seamless integration with monitoring platforms
LED indicators for connection and device status
Local and remote firmware update capabilities
Technical Specifications
Compact design with comprehensive I/O capabilities and flexible power options
Serial Interfaces
RS-232, RS-485, CAN Bus
Network Connectivity
Wi-Fi, Ethernet, LTE, LoRa
Digital Outputs
2x Dry contact (5A, 250VAC/30VDC)
Digital Inputs
2x Voltage free inputs
Power Supply
12-60V DC
Storage
SD Card up to 64GB (FAT32)
Mounting
Surface mounted, IP20
Interfaces
Bluetooth, USB Type-A
Communication Interfaces
Multiple communication protocols for seamless device integration and monitoring
Ethernet-based Modbus communication for device integration
Serial communication for legacy device connectivity
Controller Area Network for automotive and industrial applications
Status Indicators
Visual LED indicators provide instant status information for quick diagnostics
Red (solid)
Powered on, no connections
Green (solid)
Connected to server, no slaves
Blue (solid)
Connected to at least one slave device, no server
Green/Blue alternating
Server and at least one slave connected
Easy Configuration
The APEX Edge Device creates its own Wi-Fi hotspot for easy configuration from any mobile device. Simply connect to the device's network and access the web interface for complete setup and monitoring.
Wi-Fi Hotspot: APEX_<serial>
Password: 123456789
Web Interface: http://192.168.4.1
Login: admin/admin
Cloud Portal: monitoring.rubiconsa.com
Remote monitoring and management
Order Information
Apex Edge Monitoring & Control Device
- • Complete monitoring solution
- • Multiple communication interfaces
- • Wi-Fi and Ethernet connectivity
- • Local and cloud storage
LTE Add-on Module
- • Cellular connectivity option
- • Remote site monitoring
- • Backup communication link
- • Easy pin header installation
